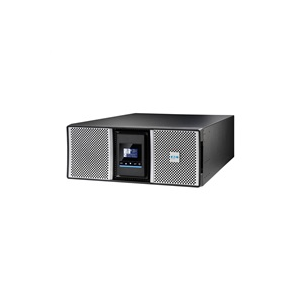

Eaton 9PX 8000i RT4U HotSwap Netpack, UPS 8000VA, G2
Počet výstupních zásuvek:4; Použití:Server, Data Center; Provedení:Tower/Rack; Zdánlivý výkon VA:8000; Výška v Racku:6U; Topologie:On-Line; Fáze (Vstup/Výstup):1:1; Komunikace:MNGMT karta; Možnosti:Prodloužení záložního času; Typ výstupu:IEC 19, Svorkovnice
| Cena s DPH | 166 070,20 Kč |
| Kategorie: | Záložní zdroje, EPS a příslušenství |
| Kód: | 149604 |
| Záruka: | 24 Měsíc(ů) |
| Výrobce: | Eaton |
General specifications
| Product Name |
Eaton 9PX Gen2 UPS
|
| Catalog Number |
9PX8KIRTNBPG2
|
| EAN |
3553340710605
|
| Product Length/Depth |
725 mm
|
| Product Height |
174 mm
|
| Product Width |
440 mm
|
| Product Weight |
83.4 kg
|
| Warranty |
3 year on electronics, 2 year on battery
|
| Compliances |
LVD Directive (CB)
EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM |
| Model Code |
Eaton 9PX 8000i RT4U HotSwap Netpack G2
|
Baterie
| Battery type |
Sealed, lead-acid
|
| Runtime graph | |
| Battery quantity |
20
|
| Battery management |
|
| Battery rating |
12 V / 9 Ah
|
| Extended battery capability |
Yes
|
Výstup
| Receptacle |
(8) C13, (8) C39, Hardwired
|
| Voltage |
230V
|
| VA rating |
8 kVA
|
| Wattage |
8 kW
|
| Output power factor |
1
|
| Output voltage range |
200/208/220/230/240 V +/- 1%
|
| Output waveform |
Sine wave
|
| Output nominal voltage |
230V default (200/208/220/230/240V)
|
| Voltage distortion output (linear load) - max |
1
|
| Feed type |
1
|
| Topology |
Online/Double-conversion
|
Vstup
| Nominal frequency |
50/60 Hz
|
| Input power factor |
>.99
|
| Input voltage range |
176-276 V (100-276 V with derating)
|
| Input frequency range |
40-70 Hz
|
Novinky a informační sdělení
| Includes network card |
Yes
|
| Communication |
|
| Ethernet interface |
Yes
|
| User interface |
Multilingual graphical LCD display
|
| Potential free switch contact |
Yes
|
| Expansion slots |
2 slots, network card included
|
| Software compatibility |
Eaton Brlightlayer Software suite
|
| Type of interface |
Other
|
Prostředí
| Altitude |
3000 m
|
| Noise level |
<37 dB at 1 meter
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Relative humidity |
0-95% non-condensing
|
Další specifikace
| Construction type |
482.6 mm (19 inch) device
|
| Package contents |
|
| Internal bypass |
Yes
|
| Auto shutdown function |
Yes
|
| Color |
Black/silver
|
| Efficiency at max. load |
97.3
|
| Rack mounting kit |
Yes
|
| Hot swap power |
Yes
|
